09 Exercises 2: WA state hourly data

UW Geospatial Data Analysis
CEE498/CEWA599
David Shean

import os
from glob import glob
import numpy as np
import xarray as xr
import pandas as pd
import geopandas as gpd
import cartopy.crs as ccrs
import matplotlib.pyplot as plt

curr_y = pd.to_datetime("today").year
curr_y

2022

Load the WA temperature, precipitation and snow depth products

• Note: these are extracted for 12:00 UTC

• Really want daily averages for much of this, but I didn’t have time to go back and requery ERA5

• Let’s use what we have to play around

outdir = 'era5_data'

merge_fn = os.path.join(outdir, 'WA_ERA5-Land_hourly_1950-2022_6hr.nc')

Optional: start Dask cluster using Jupterlab interface, connect to client

• Note this will use all CPUs on the shared node by default

• Maybe best to avoid during lab session

#Start from Jupyterlab, copy paste corresponding code

#from dask.distributed import Client, LocalCluster
#cluster = LocalCluster()  # Launches a scheduler and workers locally
#client = Client(cluster)  # Connect to distributed cluster and override default

#Set up dask chunking
chunks = {'longitude':27, 'latitude':19}

wa_merge = xr.open_dataset(merge_fn, chunks=chunks)

wa_merge

<xarray.Dataset>
Dimensions:    (longitude: 81, latitude: 38, time: 105191)
Coordinates:
  * longitude  (longitude) float32 -124.8 -124.7 -124.6 ... -116.9 -116.8 -116.8
  * latitude   (latitude) float32 49.2 49.1 49.0 48.9 ... 45.8 45.7 45.6 45.5
  * time       (time) datetime64[ns] 1950-01-01T06:00:00 ... 2021-12-31T18:00:00
Data variables:
    t2m        (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
    sde        (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
    tp         (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
Attributes:
    Conventions:  CF-1.6
    history:      2022-02-28 10:58:20 GMT by grib_to_netcdf-2.24.2: /opt/ecmw...

wa_merge['t2m'] -= 273.15
wa_merge['t2m'].attrs['units'] = 'C'

#Convert meters to mm
wa_merge['tp'] *= 1000
wa_merge['tp'].attrs['units'] = 'mm'

wa_merge['t2m']

<xarray.DataArray 't2m' (time: 105191, latitude: 38, longitude: 81)>
dask.array<sub, shape=(105191, 38, 81), dtype=float32, chunksize=(105191, 19, 27), chunktype=numpy.ndarray>
Coordinates:
  * longitude  (longitude) float32 -124.8 -124.7 -124.6 ... -116.9 -116.8 -116.8
  * latitude   (latitude) float32 49.2 49.1 49.0 48.9 ... 45.8 45.7 45.6 45.5
  * time       (time) datetime64[ns] 1950-01-01T06:00:00 ... 2021-12-31T18:00:00
Attributes:
    units:      C
    long_name:  2 metre temperature

wa_merge

<xarray.Dataset>
Dimensions:    (longitude: 81, latitude: 38, time: 105191)
Coordinates:
  * longitude  (longitude) float32 -124.8 -124.7 -124.6 ... -116.9 -116.8 -116.8
  * latitude   (latitude) float32 49.2 49.1 49.0 48.9 ... 45.8 45.7 45.6 45.5
  * time       (time) datetime64[ns] 1950-01-01T06:00:00 ... 2021-12-31T18:00:00
Data variables:
    t2m        (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
    sde        (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
    tp         (time, latitude, longitude) float32 dask.array<chunksize=(105191, 19, 27), meta=np.ndarray>
Attributes:
    Conventions:  CF-1.6
    history:      2022-02-28 10:58:20 GMT by grib_to_netcdf-2.24.2: /opt/ecmw...

#Unset units (avoid plotting in x and y label)
wa_merge['latitude'].attrs['units'] = None
wa_merge['longitude'].attrs['units'] = None

Clip to WA state geometry

#wa_merge_clip = wa_merge.rio.write_crs(wa_state.crs);
#wa_merge_clip = wa_merge_clip.rio.clip(wa_geom, crs=world.crs, drop=False)

Compute seasonal mean values for each variable

• This may take ~30-60 seconds depending on chunks and server load

• This is a simple groupby() and mean()

• Inspect the output values - do these make sense?

wa_merge_seasonal_mean = wa_merge.groupby('time.season').mean().compute()

wa_merge_seasonal_mean

<xarray.Dataset>
Dimensions:    (longitude: 81, latitude: 38, season: 4)
Coordinates:
  * longitude  (longitude) float32 -124.8 -124.7 -124.6 ... -116.9 -116.8 -116.8
  * latitude   (latitude) float32 49.2 49.1 49.0 48.9 ... 45.8 45.7 45.6 45.5
  * season     (season) object 'DJF' 'JJA' 'MAM' 'SON'
Data variables:
    t2m        (season, latitude, longitude) float32 0.9609 0.2696 ... 6.214
    sde        (season, latitude, longitude) float32 0.2804 0.3006 ... 0.02896
    tp         (season, latitude, longitude) float32 5.971 5.626 ... 1.292 1.302

#Hack to reorder seasons, as default is alphabetical
#order = np.array(['DJF', 'MAM', 'JJA', 'SON'], dtype=object)
order = np.array([0,2,1,3])
#wa_merge_seasonal_mean.season.values
wa_merge_seasonal_mean = wa_merge_seasonal_mean.isel(season=order)

#wa_merge_seasonal_resample = wa_merge.resample(time='Q-NOV').mean('time')

Plot seasonal mean grids

• Note that plot will assume x='longitude', y='latitude', but can also explicitly specify

wa_merge_seasonal_mean.data_vars

Data variables:
    t2m      (season, latitude, longitude) float32 0.9609 0.2696 ... 6.408 6.214
    sde      (season, latitude, longitude) float32 0.2804 0.3006 ... 0.02896
    tp       (season, latitude, longitude) float32 5.971 5.626 ... 1.292 1.302

for i in wa_merge_seasonal_mean.data_vars:
    wa_merge_seasonal_mean[i].plot.imshow(col='season')

Compute mean monthly values for WA state

wa_monthly_mean = wa_merge.groupby('time.month').mean('time').mean(['latitude','longitude']).compute()
wa_monthly_mean

<xarray.Dataset>
Dimensions:  (month: 12)
Coordinates:
  * month    (month) int64 1 2 3 4 5 6 7 8 9 10 11 12
Data variables:
    t2m      (month) float32 -1.957 0.09294 2.627 6.119 ... 8.671 2.257 -1.521
    sde      (month) float32 0.4876 0.5431 0.5326 ... 0.009246 0.08937 0.2947
    tp       (month) float32 3.241 2.678 2.378 1.75 ... 0.9946 1.997 3.257 3.394

f, axa = plt.subplots(3,1, sharex=True)
wa_monthly_mean['t2m'].plot(ax=axa[0])
wa_monthly_mean['tp'].plot(ax=axa[1])
wa_monthly_mean['sde'].plot(ax=axa[2]);

Helper function for plotting WA grids with state outline overlay

def plotwa(ds_in, v_list=['t2m','tp','sde'], op='mean'):
    f,axa = plt.subplots(1,3, figsize=(12,2), sharex=True, sharey=True)
    for i,v in enumerate(v_list):
        ds_in[v].plot(ax=axa[i], robust=True)
        wa_state.plot(ax=axa[i], facecolor='none', edgecolor='black')
        axa[i].set_title('WA State ERA5 Hourly: %s %s' % (op, v))
    f.tight_layout()

Get the WA state outline

#states_url = 'http://eric.clst.org/assets/wiki/uploads/Stuff/gz_2010_us_040_00_5m.json'
states_url = 'http://eric.clst.org/assets/wiki/uploads/Stuff/gz_2010_us_040_00_500k.json'
states_gdf = gpd.read_file(states_url)

wa_state = states_gdf.loc[states_gdf['NAME'] == 'Washington']

wa_state.plot();

wa_geom = wa_state.iloc[0].geometry
wa_geom

Create some plots of descriptive stats (mean, max, min, std) for 1979-present

• Pass the relevant dataset (e.g. wa_merge.mean('time')) to the plotwa helper function

• What do these metrics tell you?

  • What is causing most of the temperature variability captured by the std?

  • What is the highest temperature value

plotwa(wa_merge.mean('time'), op='mean')

plotwa(wa_merge.max('time'), op='max')

/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/utils.py:37: RuntimeWarning: All-NaN slice encountered
  return func(*args, **kwargs)
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/core.py:119: RuntimeWarning: All-NaN slice encountered
  return func(*(_execute_task(a, cache) for a in args))
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/utils.py:37: RuntimeWarning: All-NaN slice encountered
  return func(*args, **kwargs)
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/core.py:119: RuntimeWarning: All-NaN slice encountered
  return func(*(_execute_task(a, cache) for a in args))

plotwa(wa_merge.min('time'), op='min')

/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/utils.py:37: RuntimeWarning: All-NaN slice encountered
  return func(*args, **kwargs)
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/core.py:119: RuntimeWarning: All-NaN slice encountered
  return func(*(_execute_task(a, cache) for a in args))
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/utils.py:37: RuntimeWarning: All-NaN slice encountered
  return func(*args, **kwargs)
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/core.py:119: RuntimeWarning: All-NaN slice encountered
  return func(*(_execute_task(a, cache) for a in args))

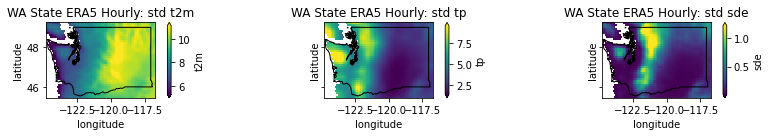

plotwa(wa_merge.std('time'), op='std')

/srv/conda/envs/notebook/lib/python3.9/site-packages/numpy/lib/nanfunctions.py:1670: RuntimeWarning: Degrees of freedom <= 0 for slice.
  var = nanvar(a, axis=axis, dtype=dtype, out=out, ddof=ddof,
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/array/numpy_compat.py:39: RuntimeWarning: invalid value encountered in true_divide
  x = np.divide(x1, x2, out)
/srv/conda/envs/notebook/lib/python3.9/site-packages/dask/array/numpy_compat.py:39: RuntimeWarning: invalid value encountered in true_divide
  x = np.divide(x1, x2, out)

Create a plot showing the conditions the day before and after the Mt. St. Helen’s eruption

pre = wa_merge.sel(time='1980-05-17T06:00')
plotwa(pre)
post = wa_merge.sel(time='1980-05-19T06:00')
plotwa(post)

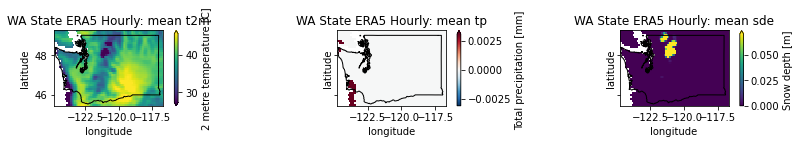

Create a plot showing the conditions during the June 2021 heat wave

• https://en.wikipedia.org/wiki/2021_Western_North_America_heat_wave

• Extra credit: prepare a map of the long-term average t2m for June 29, then difference against the t2m values from June 29, 2021

wa_merge.t2m.sel(time=slice("2021-06-22", "2021-07-05")).mean(dim=('longitude', 'latitude')).plot()

[<matplotlib.lines.Line2D at 0x7f6b73d3d160>]

plotwa(wa_merge.sel(time='2021-06-24T00:00'))

plotwa(wa_merge.sel(time='2021-06-29T00:00'))

plotwa(wa_merge.sel(time='2021-07-03T00:00'))

Extract the time series for Seattle and Mt. Rainier temperature and create line plot

• You’ll need to look up coordinates

  • Check the longitude system in the DataArrays (-180 to 180, or 0 to 360)

• Can use the sel() method to extract time series for the grid cell nearest the specified ‘longitude’ and ‘latitude’ coordinates

  • http://xarray.pydata.org/en/stable/indexing.html

  • Remember, these are large grid cells (~31x31 km), so one grid cell could cover the most of Mt. Rainier (a single temperature value that includes the cold summit and the warmer, lowland river valleys)

• Sanity check

#sea_coord = (-122.25, 47.5)
sea_coord = (-122.3321, 47.6062)
rainier_coord = (121.7603, 46.8523)

sea_ts = wa_merge.sel(longitude=sea_coord[0], latitude=sea_coord[1], method='nearest')
sea_ts

<xarray.Dataset>
Dimensions:    (time: 105191)
Coordinates:
    longitude  float32 -122.3
    latitude   float32 47.6
  * time       (time) datetime64[ns] 1950-01-01T06:00:00 ... 2021-12-31T18:00:00
Data variables:
    t2m        (time) float32 -1.475 -1.604 -1.013 ... -4.004 -5.29 -4.117
    sde        (time) float32 dask.array<chunksize=(105191,), meta=np.ndarray>
    tp         (time) float32 dask.array<chunksize=(105191,), meta=np.ndarray>
Attributes:
    Conventions:  CF-1.6
    history:      2022-02-28 10:58:20 GMT by grib_to_netcdf-2.24.2: /opt/ecmw...

rainier_ts = wa_merge.sel(longitude=rainier_coord[0], latitude=rainier_coord[1], method='nearest')
rainier_ts

<xarray.Dataset>
Dimensions:    (time: 105191)
Coordinates:
    longitude  float32 -116.8
    latitude   float32 46.9
  * time       (time) datetime64[ns] 1950-01-01T06:00:00 ... 2021-12-31T18:00:00
Data variables:
    t2m        (time) float32 -6.065 -7.447 -7.155 ... -9.224 -11.02 -13.0
    sde        (time) float32 dask.array<chunksize=(105191,), meta=np.ndarray>
    tp         (time) float32 dask.array<chunksize=(105191,), meta=np.ndarray>
Attributes:
    Conventions:  CF-1.6
    history:      2022-02-28 10:58:20 GMT by grib_to_netcdf-2.24.2: /opt/ecmw...

rainier_ts.time.values.min()

numpy.datetime64('1950-01-01T06:00:00.000000000')

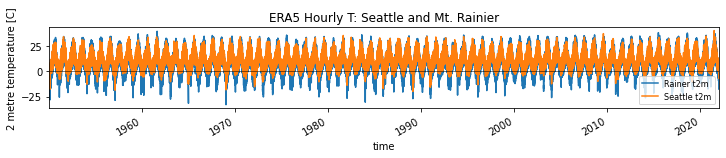

f, ax = plt.subplots(figsize=(12,1.5))
v = 't2m'
rainier_ts[v].plot(ax=ax, label='Rainer %s' % v)
sea_ts[v].plot(ax=ax, label='Seattle %s' % v)
ax.axhline(0,color='k',lw=0.5)
ax.legend(fontsize=8)
ax.set_xlim(rainier_ts.time.values.min(), rainier_ts.time.values.max())
ax.set_title("ERA5 Hourly T: Seattle and Mt. Rainier");

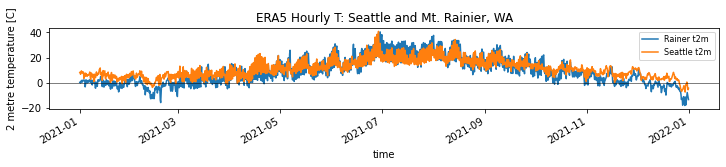

f, ax = plt.subplots(figsize=(12,1.5))
v = 't2m'
rainier_ts[v].loc[f'{curr_y-1}-01-01':].plot(ax=ax, label='Rainer %s' % v)
sea_ts[v].loc[f'{curr_y-1}-01-01':].plot(ax=ax, label='Seattle %s' % v)
ax.axhline(0,color='k',lw=0.5)
ax.legend(fontsize=8)
ax.set_title("ERA5 Hourly T: Seattle and Mt. Rainier, WA");

Helper function to plot time series

def plotv(ds_in, v_list=['t2m','tp','sde']):
    f,axa = plt.subplots(3,1, figsize=(10,6), sharex=True)
    for i,v in enumerate(v_list):
        ds_in[v].dropna(dim='time').plot(ax=axa[i], lw=0.5)
        axa[i].axhline(0,color='k',lw=0.5)
    f.tight_layout()

plotv(wa_merge.sel(longitude=sea_coord[0], latitude=sea_coord[1], method='nearest'))

plotv(wa_merge.sel(longitude=rainier_coord[0], latitude=rainier_coord[1], method='nearest'))

Compute stats for monthly, annual time periods

• Can use groupby('time.year').max(dim='time')

• Plot snow depth for April and September

Extra Credit: Create a map that shows the year containing the maximum T value at each grid cell

• These should mostly be in the most recent decade

• Note the .compute() is needed to converty dask array to ndarray for use in vectorized indexing

Note from 2022 - the ERA5-Land products include some cells that are all nan over time (e.g., ocean). This creates problems for the xarray argmax function, even with skipna=True, and various dropna calls

Need to revisit

#wa_merge['t2m'].dropna(dim='time', how='all').argmax(dim='time').compute()
#wa_merge['t2m'].idxmax(dim='time').compute()
#xr.apply_ufunc(np.nanargmax, wa_merge['t2m'].load())

#max_t_idx = wa_merge['t2m'].argmax(dim='time', skipna=True).compute()

#f, ax = plt.subplots()
#wa_merge['t2m']['time.year'][max_t_idx].plot(ax=ax)
#wa_state.plot(ax=ax, facecolor='none', edgecolor='black');

#wa_merge['t2m']['time.year'][max_t_idx].median()

Extra Credit

Export one of the derived WA grids to rasterio

• https://corteva.github.io/rioxarray/stable/examples/convert_to_raster.html#Converting-Dataset-to-raster

• https://xarray.pydata.org/en/stable/user-guide/io.html#rasterio

• https://github.com/robintw/XArrayAndRasterio/blob/master/rasterio_to_xarray.py

Load SRTM DEM for WA

• Resample

Plot contours from SRTM DEM over temperature grid

Compute atmospheric temperature lapse rate using SRTM elevations

Compute correlation between temperature and elevation

• https://github.com/pydata/xarray/issues/1115

What if my data are too big?

• http://xarray.pydata.org/en/stable/dask.html

previous

09 Exercises 1: Intro and Global Climatology

next

10: Conda, Dask, Pangeo
